Supplementary article comparing bokeh and sharpness between two popular vintage versions of the M Series 50mm from Pentax.
Posted: 23/10/2024 - 17:53
With the latest manual focus lens review, we looked at the SMC Pentax-M 50mm f/1.4 lens and had the opportunity to attempt to compare the bokeh with that of the SMC Pentax-M 50mm f/1.7 lens already looked at. The "received wisdom" is deeply seated and tells us that the f/1.4 version is contrastier, grittier and more suited to reportage but at the expense of detailed resolution. The f/1.7 version is pictorially more pleasant but loses out on absolute speed.
This of course is fine as far as it goes, but it applies to a world where the use was on film, and even then mainly in black and white so far as the amateur photographer was concerned. Now we have mainly colour, we have digital and we also have a term "bokeh" that is delightfully vague and usually described in colourful and exotic phrasology that reflects its lack of scientific precision.
Read the full reviews:
In our lens reviews we define bokeh as being the quality of the gradation of the out of focus areas in an image. This usually means the background and when the bokeh is good it makes an unobtrusive but smooth backdrop to, say, a portrait of perhaps a person or perhaps a flower. Highlights will be rendered smoothly with no doughnut effects or ragged edges, the current fashion being for rounded aperture blades rather than sharp edged hexagons.
The Results
Having decided then that our experiment is not totally objective or scientific, we can nonetheless see what we have, draw conclusions and see if the bokeh of the two lenses is pleasing to ourselves or not. To this end Rick has introduced a slider for the images and we can seamlessly move from the f/1.4 to the f/1.7 to see how the effect changes at each aperture. The 8-bladed diaphragm of the f/1.4 clearly gives a more rounded highlight than the 6-bladed f/1.7 but that is a matter of taste, not a technical measurement.
For all the comparison frames the left side is the SMC Pentax-M 50mm f/1.4 and the right side the SMC Pentax-M 50mm f/1.7
f/1.4 versus f/1.7 (wide open)
Aperture at f/2
Aperture at f/2.8
Aperture at f/4
Aperture at f/5.6
Aperture at f/8
Aperture at f/11

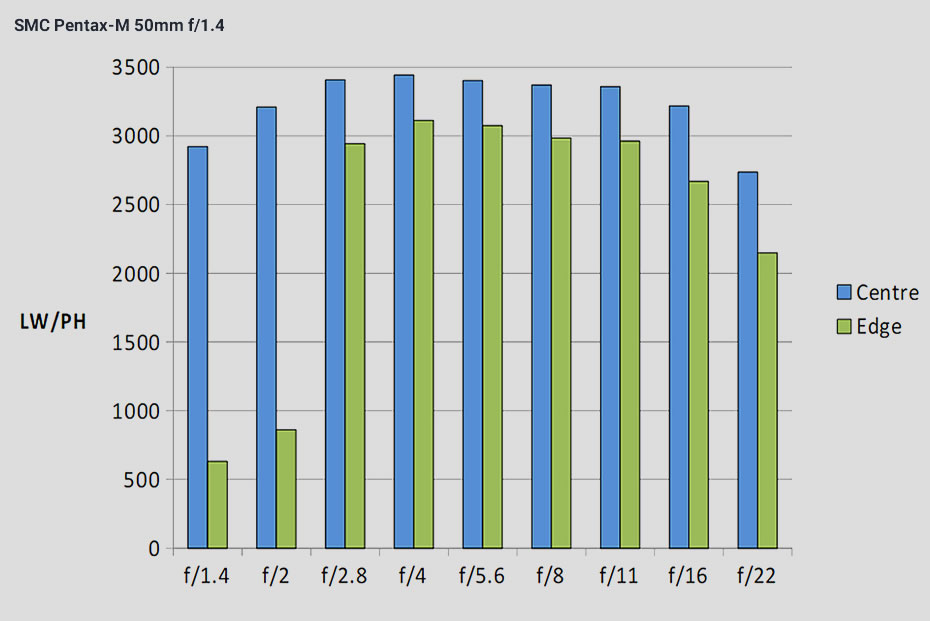

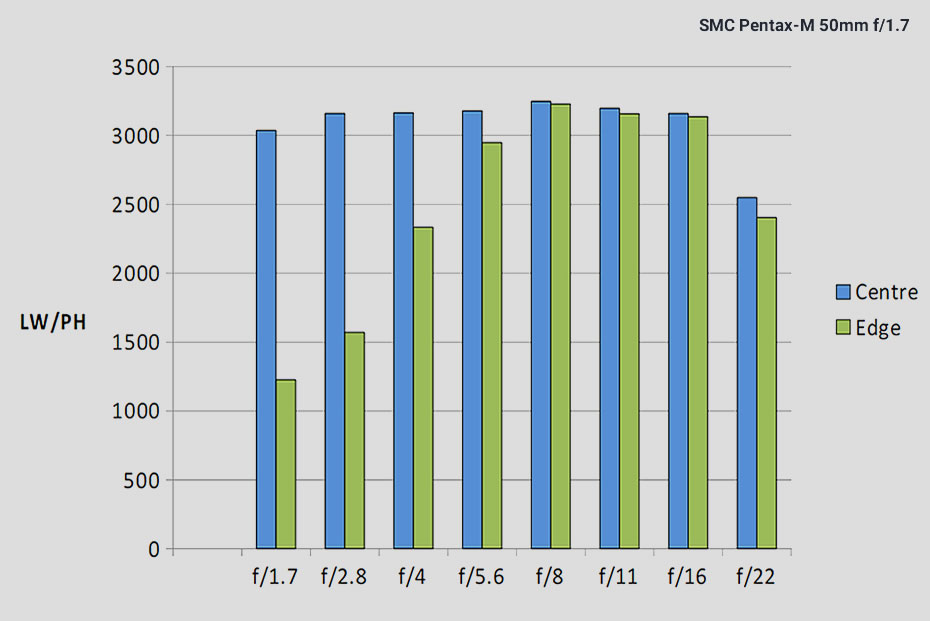

MTF Chart
So which do we prefer? Frankly, on digital it is a moot point as the effects are different rather than better or worse, but after very careful examination then probably it still holds that the f/1.7 lens has the most attractive out of focus effects. As always, beauty is in the eye of the beholder.
