Pentax A Series - The Arrival of the KA Mount

In our sequence of articles covering the different of series of Pentax cameras and lenses, John Riley turns his attention to the KA mount and A Series, that featured electronic contacts allowing for communication between camera and lens which opened up a new world of exposure control.

Posted: 19/06/2024 - 08:07

Auto exposure was the key, and in the 1970s there were two distinct groups. The Shutter Priority group used a trap needle system whereby the shutter speed was set by the user and, depending on where the indicator needle for the corresponding aperture was in the viewfinder, the lens would be stopped down to that value. Canon and Konica were two examples of this approach. The Canon AE-1 was perhaps leader of the pack.

Pentax came along with a totally reversed logic around 1972, with the aperture priority system. Now the aperture was set on the lens by the user and the camera would set the appropriate shutter speed, with great precision as now all speeds were available, be it 1/356s or 1/64s or anything else. No longer were the usual full stop values the only ones that could be set. Equally well, whatever was mounted in front of the camera auto exposure could still be used, without the need for any of the complex mechanical linkages that Shutter Priority cameras demanded.

By the late 1970s it was becoming apparent that cameras could be designed with both systems provided. Logically, Av and Tv could be joined by P and programmed auto exposure was the next step. This came to Pentax a little behind such manufacturers as Minolta, but when it arrived it built on the huge success of the Pentax ME Super and LX cameras, needing for its implementation the development of the first electronic incarnation of the K mount.

Thus the KA mount was born, with its electronic contacts enabling Shutter Priority auto exposure mode as well as Program and Aperture Priority. These new lenses were labelled SMC Pentax-A and have an "A" setting on the aperture ring. Set to A the camera can control the aperture. Set to a value the lens works like any previous K series or M series lens. Today, some 41 years later, the A lenses can still be used on any current K mount DSLR and will be fully functional within the limits of the lens. That is, as the A series are manual focus then they are still manual focus. Of course, add the SMC Pentax-F 1.7x AF adapter and even AF is available with lenses nominally of f/2.8 or faster. In practice, this can be stretched and many f/4 lenses will also work.

The beauty of the A series is the full functionality with current cameras in some extremely small packages compared to modern lens design. Many perform just as well as current lenses, perhaps not so surprising as they are computer-aided designs. Let's first have a look at the timeline of the A series and the later P series cameras.

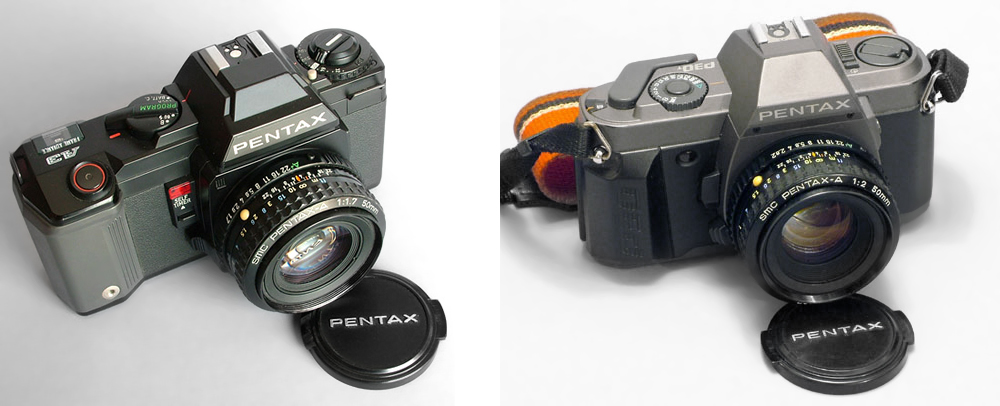

The A and P Series Cameras

The A series arrived in a spectacular way in 1983, with the Pentax Super A (Super Program in the USA), receiving in Europe the accolade of European Camera of the Year 1983. The Super A is the only A or P series camera that has all 6 exposure modes, Av, Tv, P, M, TTL Auto Flash and Programmed Auto Flash. All the following models drop the Tv setting, but do continue with Program Mode.

1984 sees the arrival of the slightly simplified Program A (Program Plus) and the more basic A3 (A3000). The Program A drops the Tv setting. The A3 is the first SLR with a built in motor. It offers just Av and P exposure modes and has DX coding for film speed values. This last point is relevant as many photographers like to rate slide films in particular slightly higher than the indicated speed, to ensure slightly denser colour slides and reduce the chance of blown out highlights.

1985 brings the P30 (P3) with just P and M modes and the more expensive P50 (P5) with A, M and two Program modes, P speed and P depth. Unfortunately, the P50, although a fine camera, did not last long as it was more expensive than the Program A and duplicated most of its functions, so never really found its place.

The P30 was updated in 1988 to the P30n (P3n) and was given back the A setting, as well as P and M. The revamp of 1990 resulted in the familar titanium coloured top plate and the designation P30T, a camera that survived and sold well for many years.

Starting off with the Super A, the development path from the ME Super is very obvious, with push button speed control. The P series cameras take a new path and are highly effective. The most interesting possibilities for the DSLR user are the A series lenses, which are as viable today as they were from 1983 onwards, a remarkable achievement and a fine example of Pentax's dedication to backwards compatibility.

Pentax A Series Cameras
Designation Modes Shutter range EV range Weight Notes and comments
Super A (Super Program) A,P,Tv,M 15-1/2000,B 1 to 19 490g European Camera of the Year 1983
Program A (Program Plus) A,P,M 15-1/1000,B 1 to 18 490g 1984
A3 (A3000) A,P 2-1/1000,B 1 to 18 530g Motorised film transport, DX coding only. 1984
P50 (P5) A,M,P speed,P depth 1-1/1000, B 1 to 18 525g 1986
P30 (P3) P,M 1-1/1000,B 1 to 18 510g 1985
P30n (P3n) A,P,M 1-1/1000, B 1 to 18 510g 1988
P30T A,P,T 1-1/1000, B 1 to 18 500g 1990
USA names in brackets

The A Series Lenses

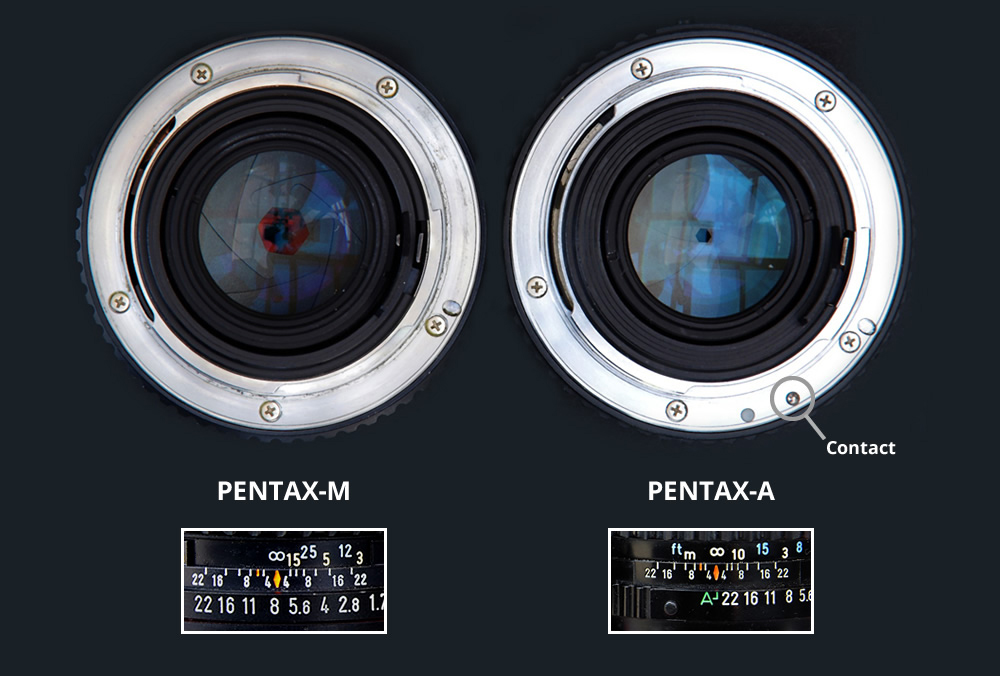

If we examine an A series lens there are a few differences that are immediately obvious. The focusing scale is no longer in a cutout. The lens name is on the sloping front edge of the focusing ring rather than within the filter thread. The index mark is a yellow bubble rather than white. Incidentally, the small index is designed to assist lens changing in dim conditions as it can be lined up with the lens release lever to find the point of insertion. There is an "A" setting on the aperture ring.

The electronic contacts on the mount allow a limited amount of information to be exchanged between camera and lens. When switching the camera on, as this information exchange does not at this stage identify the lens, the camera will ask for the focal length to be entered. This is for the benefit of applying the appropriate amount of Shake Reduction. After that, just use the lens and all exposure modes will work, a minor limitation being that not all EXIF data will be available. The lens should be set on "A" to allow the camera to control the aperture.

Manual focusing is simply a matter of turning the focusing ring until the subject is sharp in the viewfinder or on the monitor if using Live View. The human eye is unfortunately not very good at this, so it needs to be done with care, especially when using the viewfinder. If the camera is set to AF then it will give a confirmation beep when correct focus is hit, which helps enormously. The most accurate way to manually focus is to use Live View and press the centre button of the four way controller. This gives a magnified view and very high accuracy that can be more easily judged. A light press on the shutter release will restore the normal view.

There are also a number of low cost ranges, named as Takumar-A and Pentax-A. These are conventionally coated, so no SMC, but are still capable designs that deliver excellent quality.

Pentax A Series Prime Lenses
Specification Elements/Groups Min Focus Weight Filter Size Notes and comments
Ultra Wide
15mm f/3.5 13/12 0.3m 595g BI 1984-2004
16mm f/2.8 Fisheye 9/7 0.2m 320g BI 1985-2004
20mm f/2.8 10/9 0.25m 245g 67mm 1985-2001
24mm f/2.8 9/8 0.25m 205g 52mm 1984-1989
Wide Angle
28mm f/2 8/7 0.3m 215g 49mm 1984-1988
28mm f/2.8 7/7 0.3m 170g 49mm 1984-1988
35mm f/2 7/7 0.3m 205g 49mm 1984-1989
35mm f/2.8 6/6 0.3m 170g 49mm 1984-1989
Standard
50mm f/1.2 7/6 0.45m 345g 52mm 1984-2004
50mm f/1.4 7/6 0.45m 235g 49mm 1984-1989
50mm f/1.7 6/5 0.45m 165g 49mm 1984-1989
50mm f/2 5/5 0.45m 145g 49mm 1985-1998
Telephoto
*85mm f/1.4 7/6 0.85m 555g 67mm 1984-1989
100mm f/2.8 5/5 1m 260g 49mm 1984-1989
*135mm f/1.8 7/6 1.2m 865g 77mm 1984-1989
135mm f/2.8 4/4 1.2m 340g 52mm 1983-1989
Long Telephoto
*200mm f/2.8 ED 6/6 1.8m 850g 77mm 1984-1998
200mm f/4 6/6 1.9m 410g 52mm 1984-1989
*300mm f/2.8 ED 8/8 3m 2970g 49mm 1984-1998
*300mm f/4 8/7 4m 850g 77mm 1984-1989
*400mm f/2.8 ED [IF] 8/8 4m 6000g 49mm 1986-2004
400mm f/5.6 7/6 2.8m 1240g 77mm 1984-2004
*600mm f/5.6 ED [IF] 8/6 5.5m 3280g 112mm 1984-2000
*1200mm f/8 ED [IF] 9/8 8m 8580g BI/52mm 1986-2000
Macro
50mm f/2.8 6/4 0.2m 220g 49mm 1984-1988
100mm f/2.8 7/7 0.31m 470g 58mm 1985-1988
100mm f/4 5/3 0.45m 340g 49mm 1984-1989
100mm f/4 Dental 5/3 0.45m 340g 49mm 1986-2000
200mm f/4 ED* 10/9 0.55m 895g 58mm 1984-2000
Rear Converters
1.4X-S 5/4   146g   1984-2005
2X-S 7/6   210g   1984-2005
1.4X-L 5/5   175g   1984-2005
2X-L 6/5   255g   1984-2005

All the A lenses are full frame, so if used on a crop sensor APS-C format DSLR then the revised focal length should be used for the SR system. So the 50mm lens should be set at 75mm when asked to input the focal length. If the 1.7x AF adapter should be in use, then the resulting 85mm f/2.8 should be entered as such on a full frame camera, and as the nearest available to 127.5mm on APS-C.

SMC Pentax-A Zoom and Non-SMC Lenses
Specification Elements/Groups Min Focus Weight Filter Size Notes and comments
SMC Pentax-A Lenses
24-50mm f/4 11/10 0.4m 375g 58mm 1984-1989
28-80mm f/3.5-4.5 12/9 0.8m 355g 58mm 1986-1988
28-135mm f/4 17/15 1.7m 820g 77mm 1984-1991
35-70mm f/3.5-4.5 8/8 0.32m 243g 49mm 1985- Unknown
35-70mm f/4 7/7 0.25m 330g 58mm 1984-1985
35-80mm f/4-5.6 7/6 0.4m 185g 49mm 1995-2004
35-105mm f/3.5 15/13 0.4m 615g 67mm 1984-1989
35-135mm f/3.5-4.5 16/12 0.75m 450g 58mm 1986-1989
35-210mm f/3.5-4.5 17/14 1.1m 775g 67mm 1986-1987
70-210mm f/4 13/10 1.2m 680g 58mm 1984-1988
80-200mm f/4.7-5.6 11/7 1.1m 295g 49mm 1995-2005
Pentax-A Lenses
28-80mm f/3.5-4.5 8/8 1m 456g 58mm 1989-1994
70-200mm f/4 11/9 0.98 622g 58mm 1987- Unknown
Takumar-A Lenses
28mm f/2.8 7/7 0.3m 170g 49mm 1984-1988
28-80mm f/3.5-4.5 8/8 1m 456g 58mm 1984-1988
70-200mm f/4 11/9 0.98m 622g 58mm 1989-1993
70-210mm f/4.5-5.6 10/7 1.1m 405g 52mm Unknown

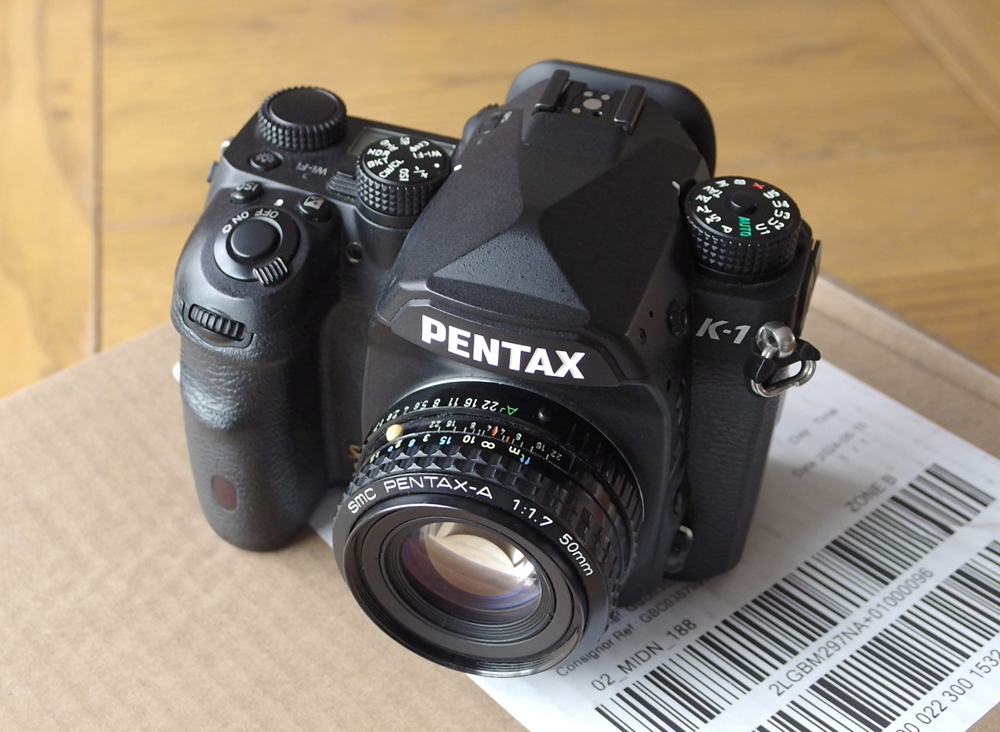

So is it worth using 40 year old manual focus lenses on a DSLR? Absolutely. These lenses can be lighter, more compact, still of superb quality and fully usable with a minimum of caveats for the modern DSLR user. Many of them have attractive characteristics of their own. This is also the era where the zoom lens was taking off in a major way. The A series offers a wide range of zooms, plus an excellent selection of fast primes and Star lenses. Cost should also be attractive, apart from perhaps lenses that become collectors items, thus inflating the price.

We saw what great lenses were available in the M series. Now we can see the fantastic options of the A series, with just that little extra ease of use.
