Pentax 60-250mm baffle 3D printer

cardiffgareth
Posted 30/01/2020 - 09:23 Link
Does anyone know anywhere in the UK where they do 3D printing of the rear baffle as I saw on the PF site several versions but the best being the one with the square cut out of the baffle. Seems there was someone doing it a few years back but in the US.

Thanks.
Gareth Williams ARPS

My outfit: K1ii - Pentax D FA 24-70mm f2.8 - Pentax DA* 300mm f4 - Pentax modified DA* 60-250mm f4 - Irix 15mm Firefly - Pentax FA 35mm - FA 50mm f1.4 - Tamron SP 90mm macro - Pentax AF 540 FGZ II

Welsh Photographer
Flickr
Instagram
My PPG
Foundation NFT
GeoffMoore
Posted 30/01/2020 - 10:34 - Helpful Comment Link
I have replied on the other post, over the way!
cardiffgareth
Posted 30/01/2020 - 10:55 Link
Didn't know that was you!

Thanks.
Gareth Williams ARPS

My outfit: K1ii - Pentax D FA 24-70mm f2.8 - Pentax DA* 300mm f4 - Pentax modified DA* 60-250mm f4 - Irix 15mm Firefly - Pentax FA 35mm - FA 50mm f1.4 - Tamron SP 90mm macro - Pentax AF 540 FGZ II

Welsh Photographer
Flickr
Instagram
My PPG
Foundation NFT
cardiffgareth
Posted 27/02/2020 - 16:52 Link
Just a follow up, I did a little video yesterday

https://youtu.be/4lZ0IXgEfwM

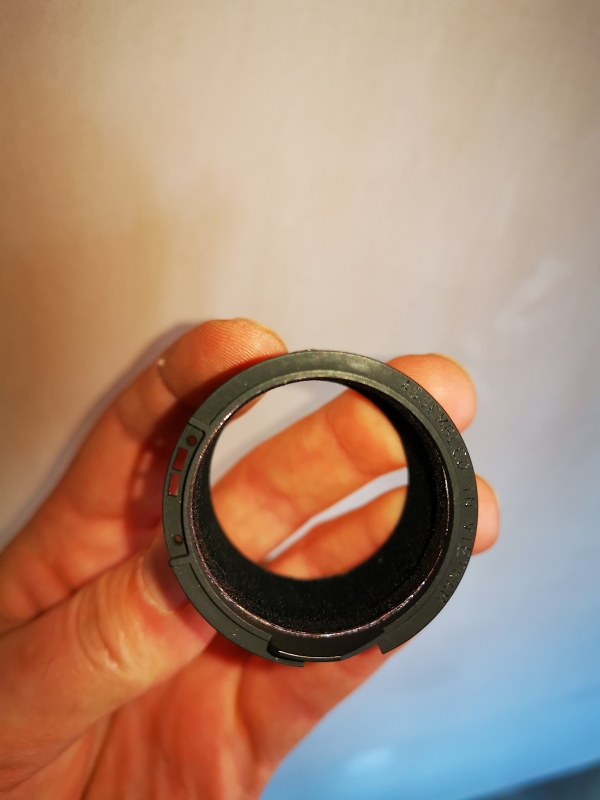

Basically I bought another rear baffle from JPTechnical for £16 delivered. Did the same as the first in terms of splitting the 2 parts of the rear baffle but as this was a spare I took a metal file to the lip whilst it was on a wooden work bench and as it's not thick or industrial metal, it filed down easy and quickly. A few goes with the file gently smoothed the surfaces. Then it was a case of washing thoroughly to remove any metal shards and drying before using a black sharpie on the shiny metal and glueing back together.

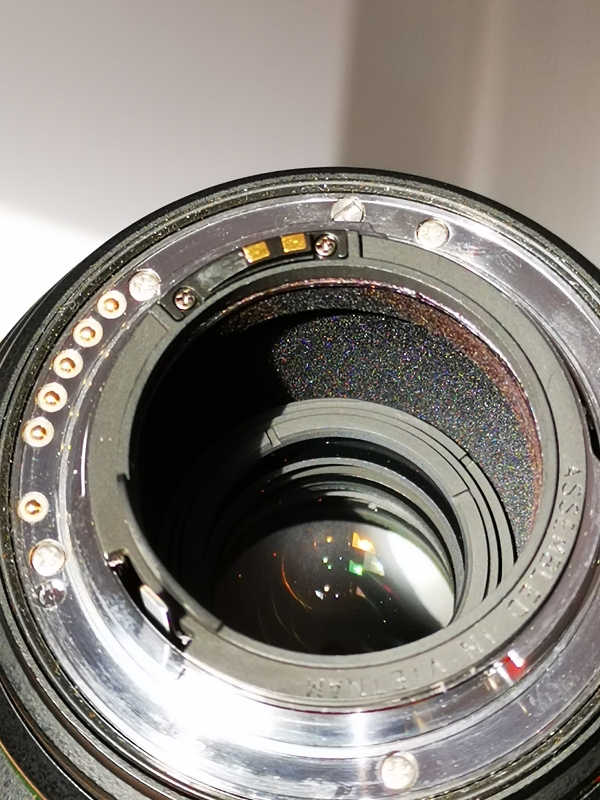

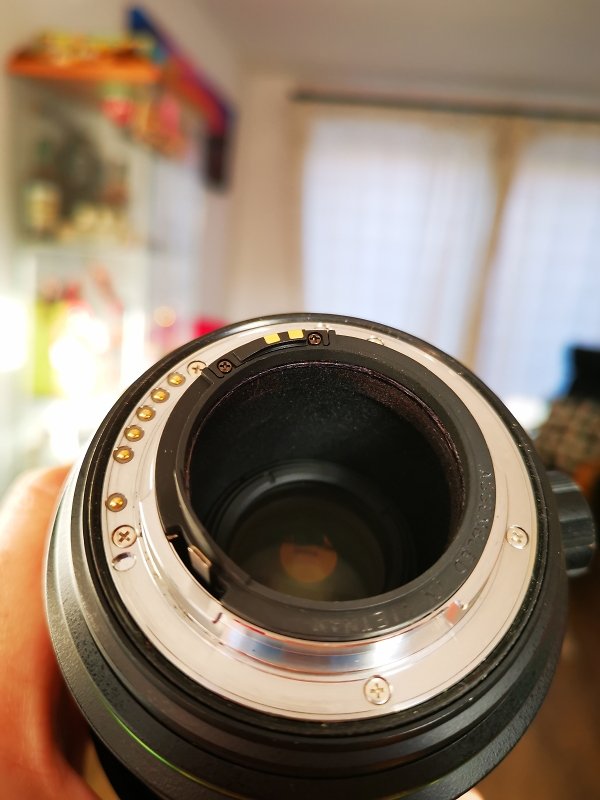

Here is the rear baffle back in and with no lip.

Comment Image


Comment Image


Comment Image
Gareth Williams ARPS

My outfit: K1ii - Pentax D FA 24-70mm f2.8 - Pentax DA* 300mm f4 - Pentax modified DA* 60-250mm f4 - Irix 15mm Firefly - Pentax FA 35mm - FA 50mm f1.4 - Tamron SP 90mm macro - Pentax AF 540 FGZ II

Welsh Photographer
Flickr
Instagram
My PPG
Foundation NFT
HarisF1
Posted 27/02/2020 - 22:21 Link
That's pretty awesome Gareth, I'm surprised it wasn't so much work with the file considering I read a comment a while ago saying it was quite a tough metal. Perhaps the user was using a tool without the required hardness.
All the gear with no idea
