D-LI90 3D printed battery covers


andymat

Link Posted 27/02/2015 - 21:15
Since there was quite a bit of interest in these when I mentioned them recently, I have had a batch made, which reduces the cost.

However, due perhaps to a miscalculation, I now only have covers for the D-LI90 battery left. Ie the one for the K-5 and I think the K-7 and K-3.

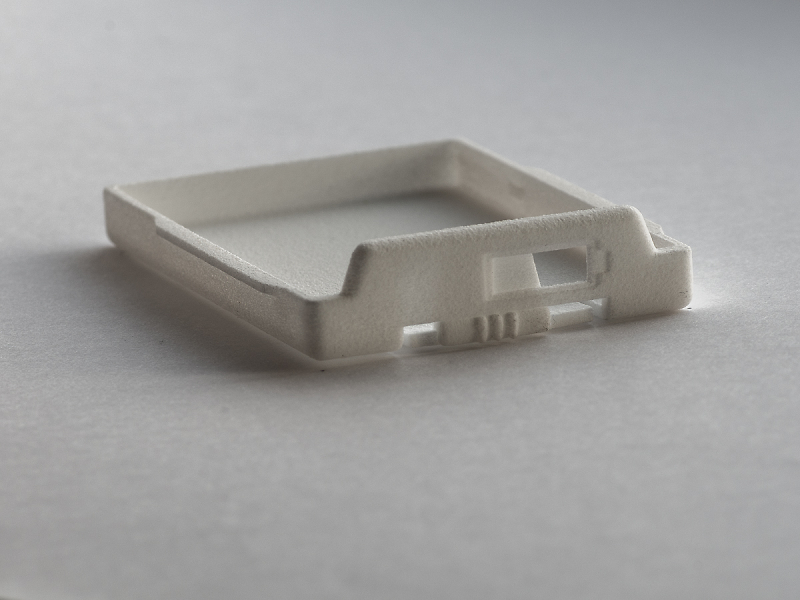

They feature a slider with 3 settings to indicated whether it is fully charged, partially charged or depleted. The cover snaps onto the battery with the arrow pointing in the same way as the arrow on the cover.

They are made from Nylon and like all rapid prototyping/3D printing processes, built up in very thin layers.

Let me know if you would like one (or more) or have any further questions.

To recover the cost of getting them made I am charging 3.60 each and the postage is by Royal Mail Large Letter post - 0.73 2nd class, 0.93 1st class once per package (as long as it doesn't go over the size limits for this service).









Andy
Flickr
Website

Dogwalker

Link Posted 27/02/2015 - 21:33
Hi Andymat, Could i please have 4 covers, How do you prefer to be paid?

Regards Bob.

NaimKhan

Link Posted 27/02/2015 - 21:43
Hi Andy,
Can I please have 3?
Also payment method please.
Thanks.
PPG

Mike-P

Link Posted 27/02/2015 - 22:00
3 for me please
No equipment list here but thanks for taking an interest. My Flickr

andymat

Link Posted 27/02/2015 - 22:10
Well that was quick. Sorry but it looks like they are all gone now. Last ones to Mike-P
Andy
Flickr
Website
Last Edited by andymat on 27/02/2015 - 22:11

scarr1

Link Posted 28/02/2015 - 01:07
Pre order of 3?

techno-terminator

Link Posted 02/03/2015 - 13:42
My battery covers for my K30 arrived this morning - I'm delighted with them.

A great fit - the battery is snug in it , and there's no doubt it can't come off accidentally.
let the education continue

proud owner of a couple of cameras and a few bits and bobs

davem

Link Posted 03/03/2015 - 20:11
Thanks Andy they work a treat on original Pentax batteries

Dave

andymat

Link Posted 03/03/2015 - 20:23
Thanks to you both for the feedback.
Andy
Flickr
Website

JohnX

Link Posted 04/03/2015 - 13:56
Covers arrived today, thanks, and fit all the batteries I've tried them on, including third party ones.

For the record, I have D-Li109 batteries from DSTE - perfect fit - and some 'no name' D-Li190 - good fit - in addition to actual Pentax batteries in both sizes.

I'm sure I also have a Hama D-Li190 somewhere. I'll report back once I find and try it.

Any chance you'll me making any for the D-Li150 battery?

I'm very happy with the covers Andy; well done, but have one suggestion. The covers fit very well, and I was wondering if a thumb-hole in the base of the cover (obviously not exposing the contacts) would assist removal? Hopefully the hole wouldn't weaken it.
Last Edited by JohnX on 04/03/2015 - 14:04

Dogwalker

Link Posted 04/03/2015 - 14:02
Hiya Andy, Just to let you know that the covers arrived safely this morning 04/03/ 2015. They are a fantastic product over the moon with them. Many Thanks.

Regards Bob.

andymat

Link Posted 04/03/2015 - 14:33
Thanks for the comments - they are helpful.

John, Yes, there is potential to make it easier to remove them and I will look at this, thanks.
As for the 150 battery, I might be able to borrow one briefly so I can make one for that so potentially yes.

I also have a Pentax Q and so am considering a cover for the batteries for those too. As they are pretty small and tend to run out quite quickly, I'm wondering about a cover to take 2 or even three in one part. Anyone have any preference or thoughts on Q battery covers?
Andy
Flickr
Website

Mike-P

Link Posted 04/03/2015 - 15:37
Mine arrived today as well thanks ... they are a very loose fit.

Then I realised the battery was in the wrong way round

Great stuff, thanks again Andy.
No equipment list here but thanks for taking an interest. My Flickr

andymat

Link Posted 04/03/2015 - 15:51
Yes Mike,

You can put them in the wrong way round and they are a loose fit that way round. It also means that the contacts would be at the end where the sliding indicator is so there are also small areas where the contacts could be exposed so I perhaps should make it so that you cannot assemble them the wrong way round.

Just to be clear (in the best possible politicians speak ) the arrow on the cover should point in the same direction as the one on the battery. But yes, I know the arrow on the cover isn't that easy to see!
Andy
Flickr
Website

techno-terminator

Link Posted 04/03/2015 - 16:03
I'm probably the one here with the weakest, poorest hand control [ blasted injuries and resulting OA ] and I have to say i had no problem with either my Pentax or the Innovat8 Battery . It was a very positive feel as I put them in and took them out again.

I suppose it would be possible to colour in the arrow - but I spotted it as I unpacked my pair of covers . Might still do that
let the education continue

proud owner of a couple of cameras and a few bits and bobs
