Pentax WG-3 Waterproof Camera Review

The Pentax WG-3 is waterproof to 14m, shock resistant to 2m and freeze resistant to -10°C. Daniel Bell reviews.

Posted: 29/07/2013 - 11:21

Features
Handling
Performance
Verdict

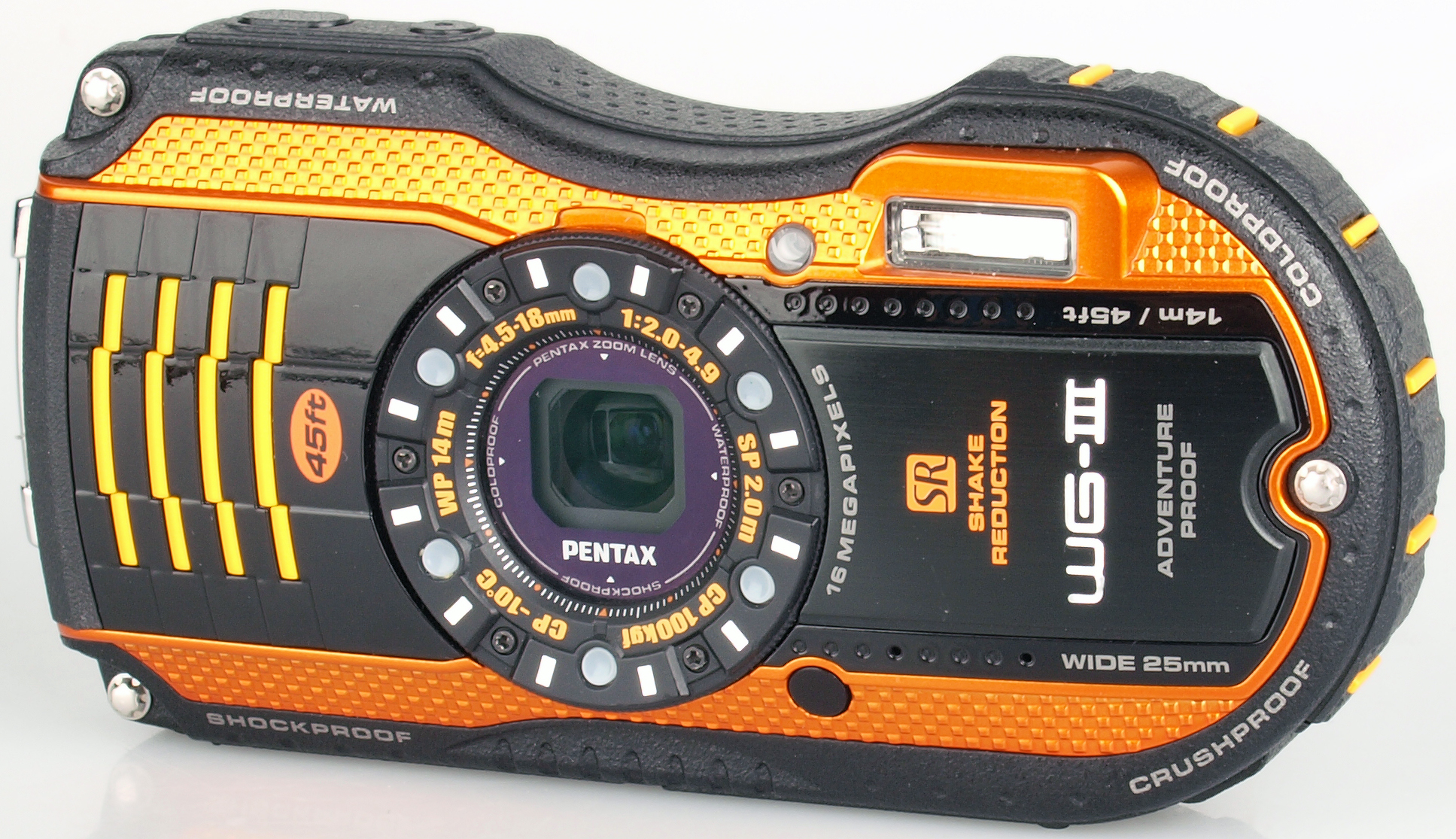

The Pentax WG-3 is a new outdoors camera, released in January 2013. The latest model is waterproof down to 14m and features a lens with a maximum aperture of f/2.0. On test here is the model without GPS, available in orange and black for £290, the GPS model is available in purple and green for £325.

Pentax WG-3 Features

The Pentax WG-3 has a 16 megapixel back-illuminated CMOS sensor as well as a 4x optical zoom lens, which is a 35mm equivalent of 25-100mm. It has a wide aperture f/2.0 lens at the wide-angle end to allow as much light as possible into the sensor, great for shooting underwater. To help reduce camera shake there is sensor shift SR (shake reduction).

Being a camera for the outdoors, it is waterproof to 14m, shock resistant to 2m, freezproof to –10°C and dustproof. There are six LED macro lights around the circumference of the lens barrel for macro shooting.

When shooting there is auto picture mode which automatically selects the best camera settings for the detected scene. There are a number of other scene modes such as HDR, digital microscope, time lapse and many more. When you've finished shooting you can edit your pictures in playback using a range of filters. There is a digital spirit level you help keep your pictures straight.

Videos are recorded in full 1080p HD at 30 fps. Optical zoom is available during recording and you can also record high-speed videos at 120fps. The WG-3 can be connected to a HDTV for playback via HDMI.

Key Features

• 16 megapixel back-illuminated CMOS sensor
• 4x optical zoom f/2.0-4.9 lens (35mm equiv: 25-100mm)
• Sensor shift SR (Shake Reduction)
• 3 inch 16:9 wide 460k dot LCD screen
• Waterproof to 14m
• Shockproof to 2m
• Freezproof to –10°C
• Crushproof to 100Kg
• Dustproof
• Six LED macro lights
• Full 1080p HD video recording
• ISO 125 - 6400
• 1cm minimum focusing distance



Pentax WG-3 Handling

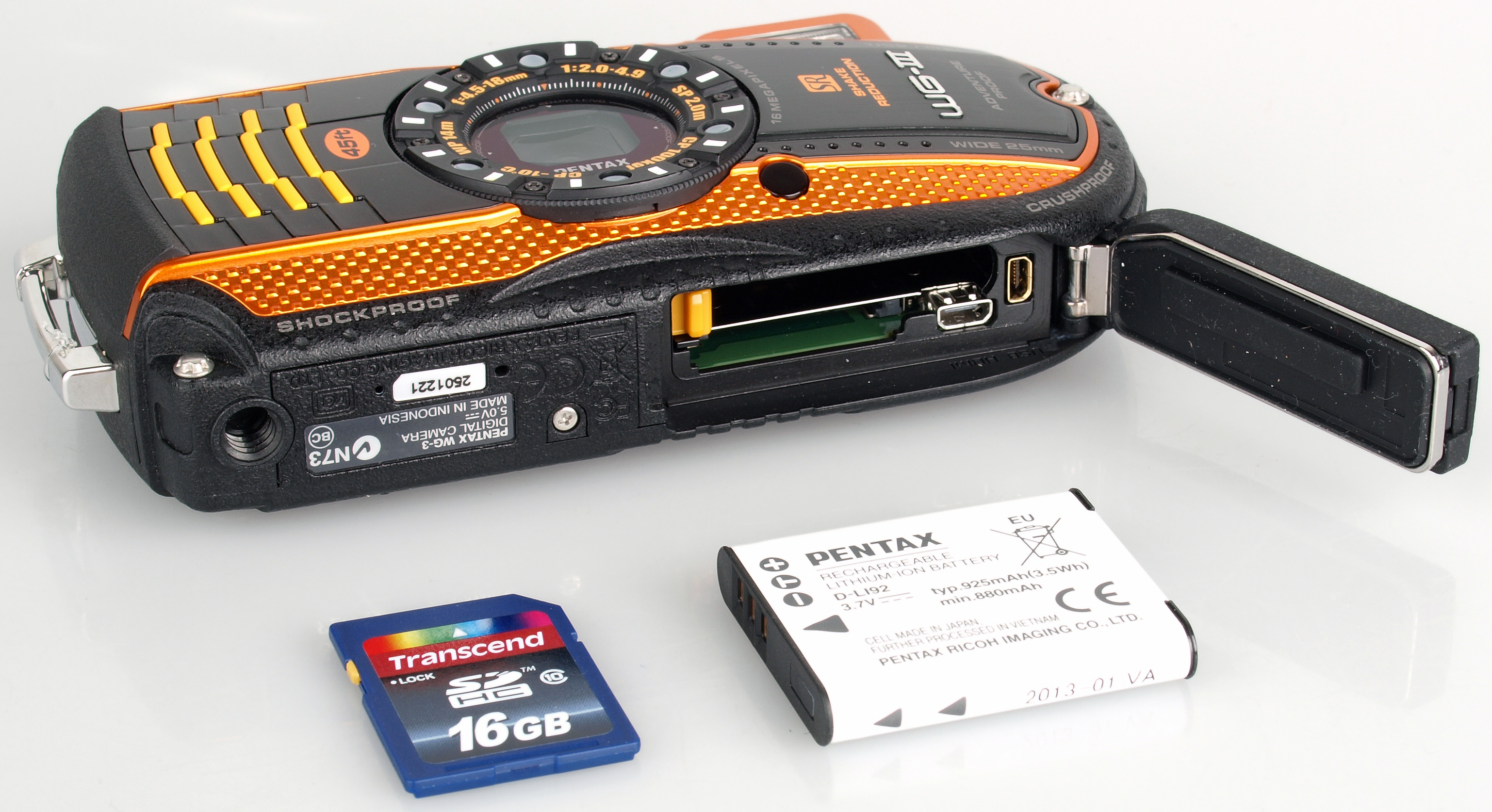

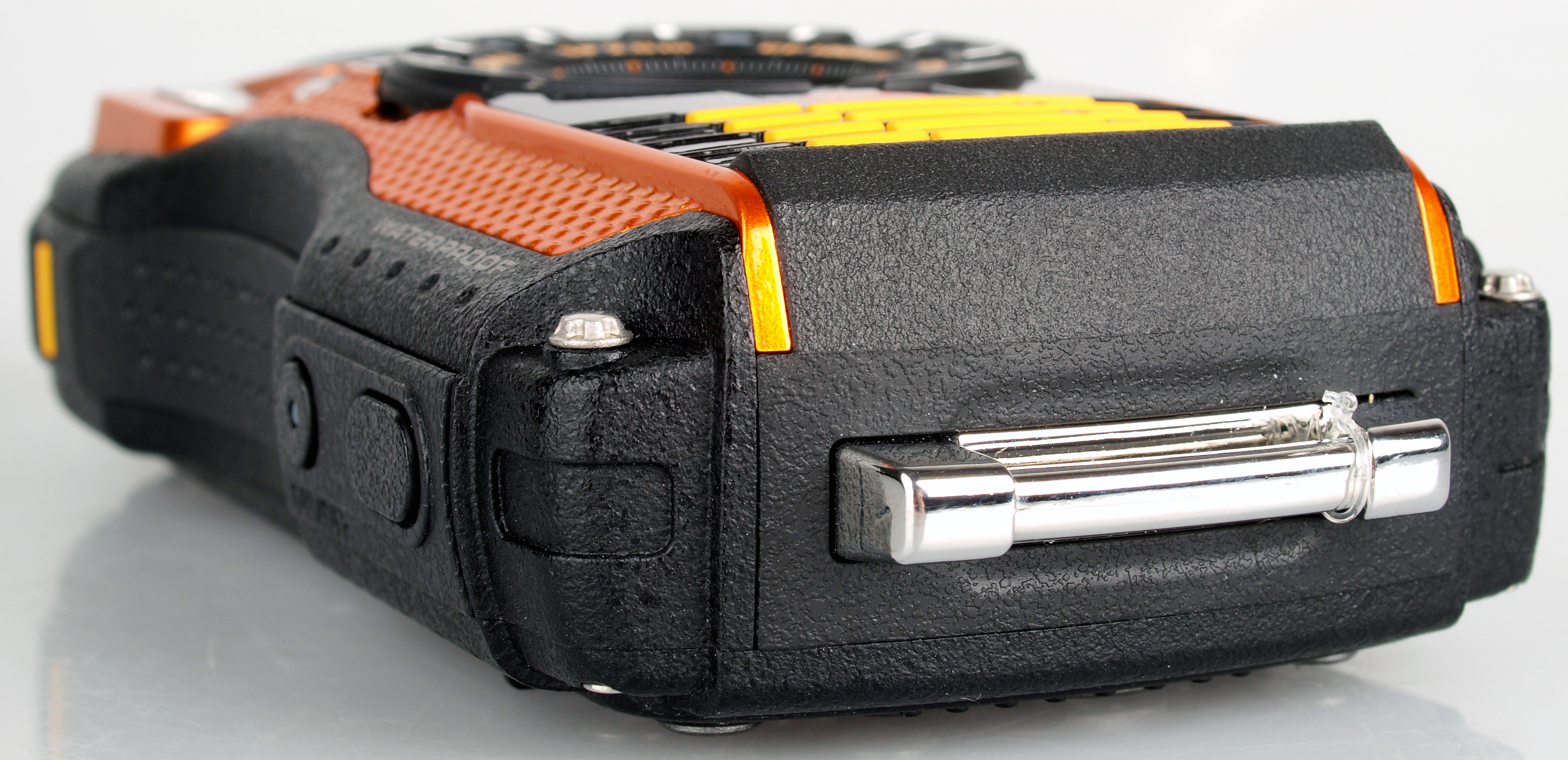

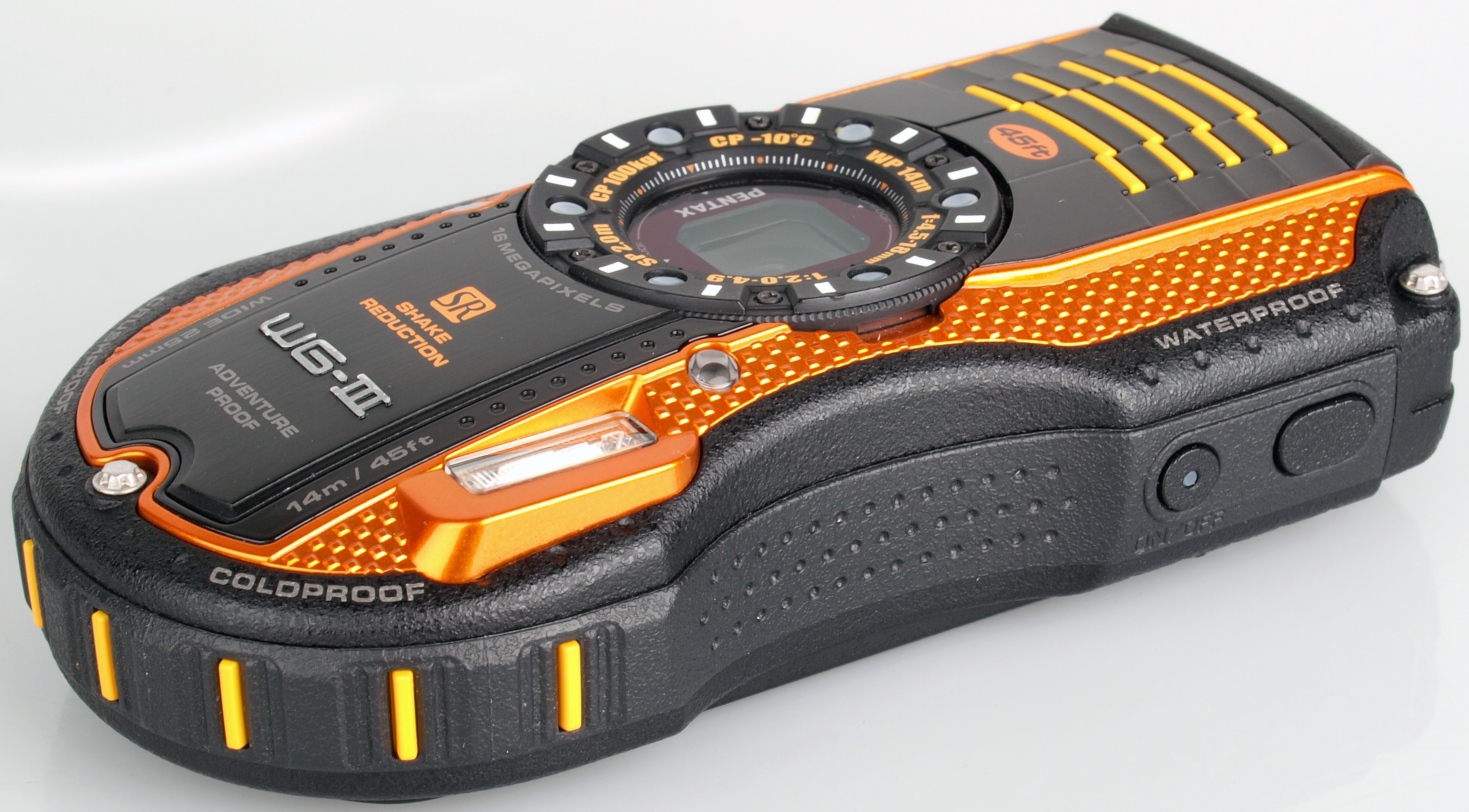

The Pentax WG-3 is rubberised on the outside and has an unusual shape, all of which makes it easy to grip, even in cold, wet conditions. To reduce the chances of the battery / memory card slot being opened by mistake when underwater it has an open / close switch and another which acts as a lock. A plastic ring is supplied with the camera which acts as a support for using the digital microscope mode.

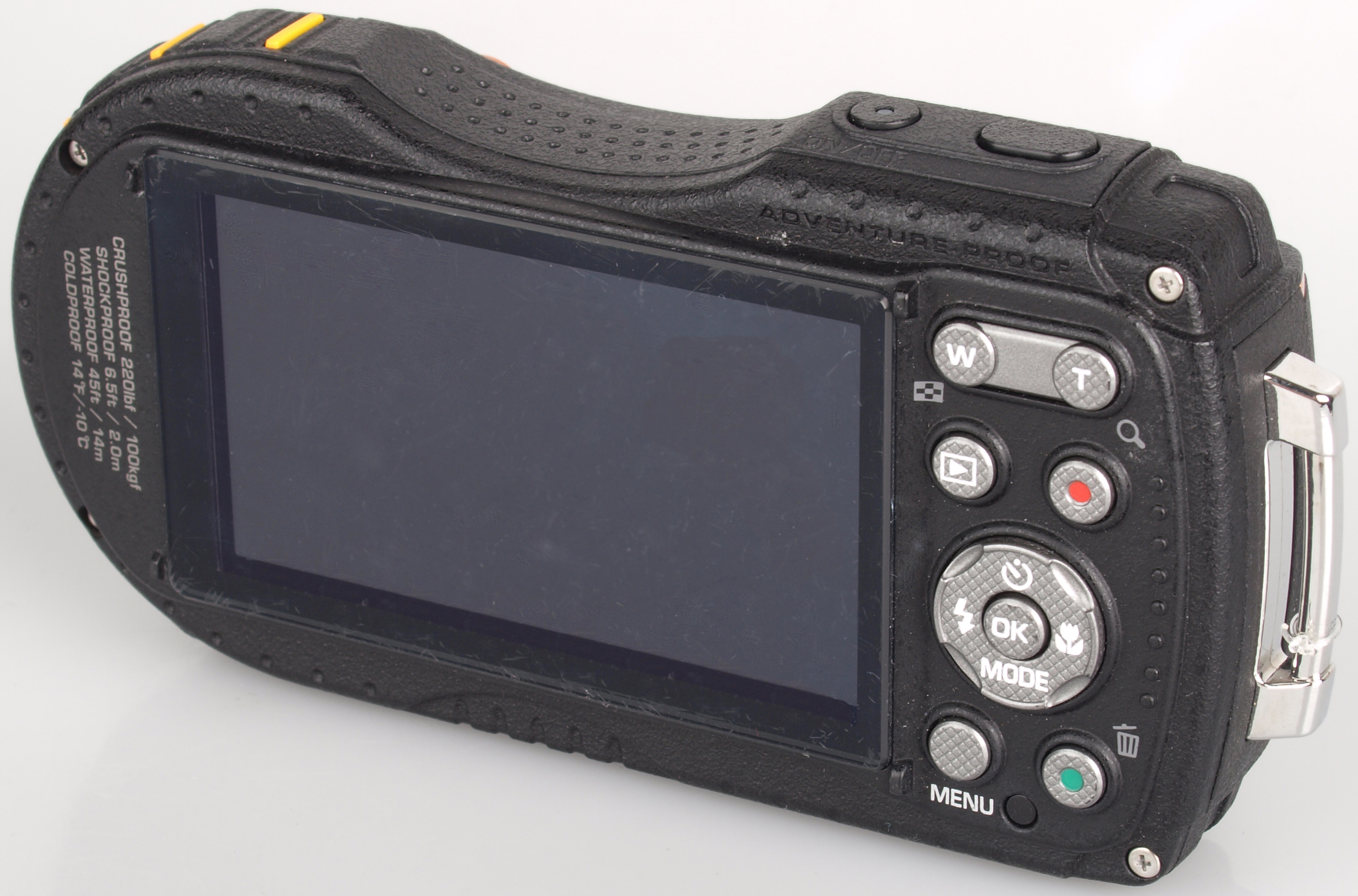

On top of the camera you'll find the on / off switch and the shutter release. On the back there are W and T buttons for adjusting the optical zoom, the lens is housed internally within the camera. Other buttons include movie record, playback, menu, green and a d-pad which is used for cycling through the menus and also gives access to the self-timer, flash, focus and shooting modes.

The screen is bright and clear and has a decent resolution at 460k dots. The menu system is well laid out and easy to use. Battery life is rated at a decent 240 shots according to CIPA test results.

We took a number of shots to test the camera's responsiveness, from switch on to first photo, shot to shot, focusing speed etc. We take a number of shots and then use the average to ensure accurate and consistent tests, making it easy to compare with other cameras.

Shutter Response	0.125 secs
Wide - Focus / Shutter Response	0.25 secs
Full zoom - Focus / Shutter Response	0.3 secs
Switch on Time to Taking a Photo	2.2 secs
Shot to Shot without Flash	1.4 secs
Shot to Shot with Flash	2.6 secs
Continuous Shooting	1.5 fps
Burst Shooting	15.0 fps

Continuous shooting records in full 16 megapixel resolution, burst shooting is limited to between 4 and 5 megapixels.

Pentax WG-3 Performance

Pentax Optio WG-3 Sample Photos

Sample Photos - The WG-3 produces colourful images that are well exposed, with portraits having decent skin tones, free of red-eye. The images produced when shooting underwater are good. You can also shoot HDR images which Pentax have significantly improved from earlier compact cameras.

Pentax Optio WG-3 Lens Test Images

Lens Performance - When shooting wide, detail is good in the centre of the images, but softer in the corners. When shooting with the full optical zoom, detail isn't quite as good, purple fringing is barely noticeable. With a minimum focusing distance of just 1cm it's possible to take decent macro shots.

Pentax Optio WG-3 ISO Test Images

ISO Noise Performance - Noise is low at ISO 125, 200 and 400, with images becoming a little soft at ISO 800. Images start to lose detail at ISO 1600, but remain sharp in most places and are very soft with large amounts of detail lost at ISO 3200. You can shoot at ISO 6400, but this is best avoided as image quality is poor at this setting.

Pentax Optio WG-3 White-balance Test Images

White Balance Performance - Under the incandescent lights the auto white balance (AWB) has a slight colour cast, with the incandescent preset taking a good picture. Under the fluorescent lights, the AWB performs well, colour casts are evident when using any of the fluorescent presets.

Pentax Optio WG-3 Digital Filters

Digital Filters - You can select from three image tones when shooting. When you have finished shooting you can enter playback to edit your pictures with a number of digital filters, with a number of examples above.

Video - Below is a video recorded in full 1080p HD. Quality is good.



Value For Money

The Pentax WG-3 is available for £243.99. Recommended waterproof cameras include the Panasonic Lumix DMC-FT5 available for £275.37, Olympus TG-830 available for £202.99, the Nikon Coolpix AW110 available for £213.60 and the Canon Powershot D20 available for £254.

Pentax WG-3 Verdict

A lot of thought has gone into the design of the WG-3, it looks like an outdoors camera and it certainly acts like one. You can drop it, freeze it and even go down to 14m underwater. Unfortunately image quality isn't as good as we hoped, detail isn't great, although the bright lens will mean you can stay away from the higher ISO settings in darker scenes. When shooting in low light you can use the LED macro lights to add further light. If you tend to shoot images to share on the web, then images quality will be good enough, particularly as colour reproduction is decent. If you want the camera with GPS, read our Pentax WG-3 GPS review.

Specifications: Pentax Optio WG-3
Availability
Discontinued	Yes
Year announced	2013
Box Contents
Box Contents	USB cable, AC cable, Li-ion battery, Battery charger, Carabiner strap, Strap, Macro stand and Software
Construction
Waterproof	Yes
Dimensions
Depth	32mm
Height	65mm
Weight	209g
Width	125mm
Exposure Control
Digital filter	Yes
Exp modes	Program, Scene modes, A
Exposure Comp	+/-2
ISO sensitivity	6400 - 125
Metering	Centre-weighted - Average, Multi Pattern, Spot
Shutter speeds shortest	1/4000sec
White balance	Auto, Manual, Outdoors/Daylight, Incandescent, Fluorescent, Shade
Focusing
Focusing modes	Autofocus
Min Focus	1cm
Image Sensor
Aspect Ratio	4:3, 16:9, 1:1
Pixels	16Mp (Megapixels)
Pixels (H)	3456
Pixels (W)	4608
Sensor Size	1/2.3 inch
Sensor Type	CMOS
Interface
Ethernet	No
Firewire	No
HDMI	Yes
Platform	PC, MAC
USB	USB 2
Wi-Fi	No
LCD Monitor
Brightness adjust	Yes
LCD Monitor	3in
Live view	Yes
Screen resolution	460,000 dots
Tilting screen	No
Touch Screen	No
Lens
35mm equivalent	140 - 28mm
Digital Zoom	7.2x
Lens Range	25 - 5mm
Max Aperture	f/4.9 - 2
Optical Zoom	5x
Other Features
GPS enabled	No
Image Stabilisation	Yes
Projection	No
Power Source
Battery Life (CIPA rating)	240shots
Battery Type	Rechargeable D-LI92 Lithium-Ion battery
Shooting Options
Continuous shooting	1fps
Sound recording	Yes
Storage
Card Type	SD, SDHC, SDXC
File Type	JPG
Internal Memory	88.2MB
Video
Movie mode	Yes
Optical Zoom with Video	No
Stereo Sound	No
Video FPS	30
Video Resolution	1920x1080 FullHD, 1280x720 HD 720p, 640x480 VGA
