HD Pentax-DA 55-300mm f/4-5.8 ED WR Lens Review

Gary Wolstenholme reviews the new HD Pentax-DA 55-300mm f/4-5.8 ED WR telephoto zoom lens with weather resistance.

Posted: 28/01/2014 - 13:14

Handling and Features
Performance
Verdict
Specification

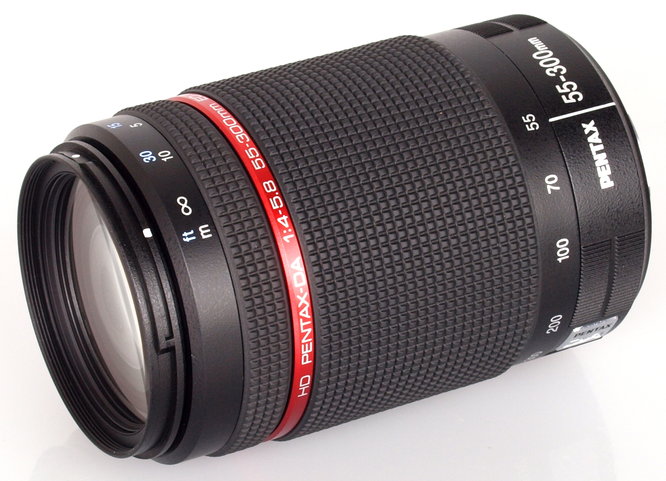

This 5.5x zoom lens provides an angle of view equivalent to an 84.5-460mm telephoto lens on a 35mm format camera, when mounted on a Pentax Digital SLR. It sports the latest HD lens coatings that promise to help suppress flare and improve light transmission. This lens has a weather resistant construction and costs around £400.

HD Pentax-DA 55-300mm f/4-5.8 ED WR Handling and Features

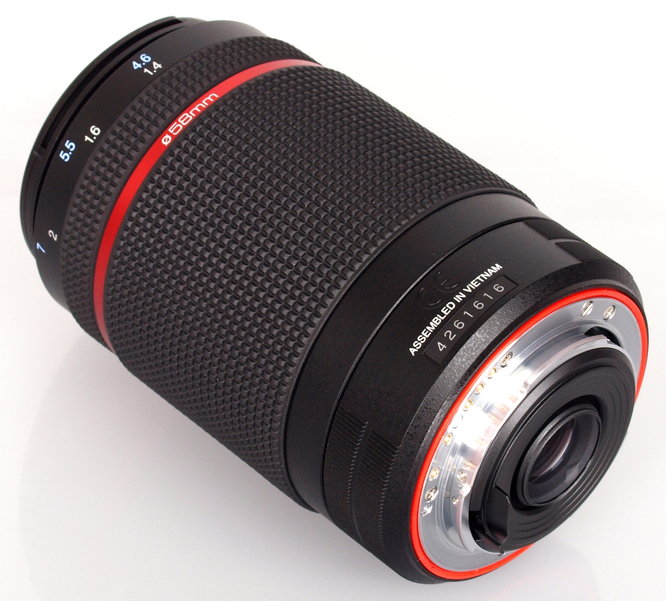

The build quality of this lens is good for a lens of this price bracket, with high quality plastics being used for much of the lens barrel and a metal lens mount. This lens is also quite lightweight, only tipping the scales at 502g with the lens hood attached. It balances well with the Pentax K-5 IIs body used for testing.

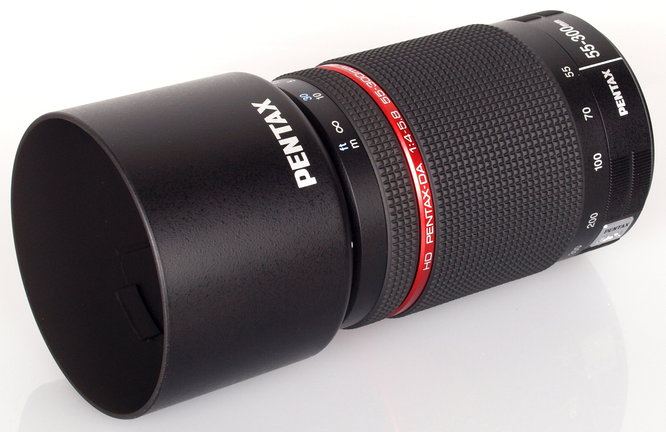

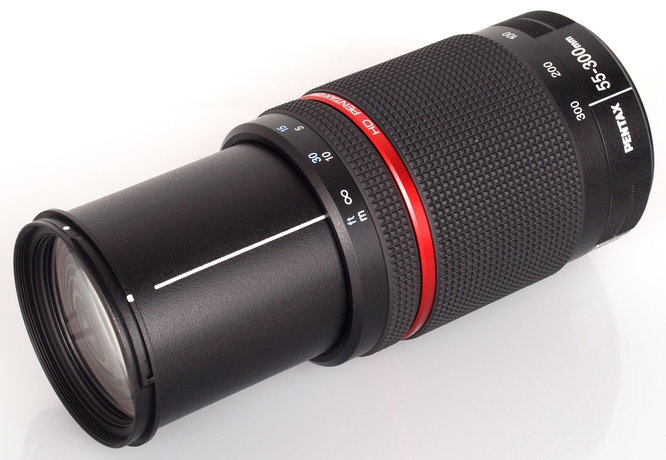

Focusing isn't performed internally, so the lens barrel extends during focusing and zooming. Even so, the filter ring does not rotate, which makes it perfect for use with polarising and graduated filters. A deep circular hood is supplied with the lens that attaches via a bayonet fitting on the front of the lens.

The manual focusing ring rotates during auto-focus, but it is well enough out of the way to prevent it catching your fingers during operation. Manual focusing action isn't very well damped, although there is enough resistance in the mechanism to make applying manual adjustments relatively straightforward. The Pentax 'Quick Shift' focusing system has been implemented on this lens, which means manual adjustments can be applied once the lens has focused automatically. Auto focus is screw-driven, but is reasonably quick. The minimum focus distance of 1.4m is typical for a lens of this type.

HD Pentax-DA 55-300mm f/4-5.8 ED WR Performance

At 55mm and maximum aperture, sharpness is outstanding in the centre of the frame and approaches excellent levels towards the edges of the frame. Stopping down to between f/5.6 and f/11 produces excellent sharpness across the frame at this focal length.

Zooming to 100mm results in similar sharpness in the centre of the frame at maximum aperture, although clarity towards the edges of the frame is noticeably reduced. Here clarity is still outstanding in the centre, but falls just short of good sharpness towards the edges of the frame. Stopping down to between f/8 and f/11 results in peak sharpness across the frame at this focal length.

Finally, at 300mm, sharpness is very good in the centre of the frame at f/5.8 and remains so when stopped down. Unfortunately, clarity towards the edges of the frame drops just below fair levels at maximum aperture. Stopping down improves performance towards the edges of the frame slightly, although it never really achieves good levels of performance here.

Pentax HD Pentax-DA 55-300mm f/4-5.8 ED WR MTF Charts

Chromatic aberrations are well controlled for much of the zoom range, barely exceeding three quarters of a pixel width towards the edges of the frame for much of the zoom range. However, it's a different story at 300mm, where ringing exceeds one pixel width at maximum aperture. This level of fringing may be possible to spot, especially in harsh crops from the edges of the frame along high contrast details.

Pentax HD Pentax-DA 55-300mm f/4-5.8 ED WR Chromatic Aberration Charts

Falloff of illumination is well controlled for a telephoto zoom. At 55mm the corners of the frame are 0.76 stops darker than the image centre and at 300mm the corners are 0.98 stops darker. Visually uniform illumination is achieved with the lens stopped down by one full stop from maximum aperture throughout the zoom range.

Distortion is also well controlled for a lens of this type. Imatest could only detect 0.05% barrel distortion at 55mm and 1.27% pincushion distortion at 300mm. The distortion pattern is uniform across the frame, which should make it relatively easy to apply corrections in image editing software afterwards if absolutely straight lines are paramount.

During testing, this lens proved itself very resistant to flare and contrast is retained well, even when shooting into the light. The deep circular hood does an excellent job of shading the lens from extraneous light that may cause issues with flare.

Pentax HD Pentax-DA 55-300mm f/4-5.8 ED WR Sample Photos

Value For Money

Being priced at around £400, this lens is quite reasonably priced for this kind of lens at launch. However, those with a keen eye for a bargain may look towards this lens' predecessor, which is identical apart from it lacking the HD coatings and weather sealing, but only costs around £270.

HD Pentax-DA 55-300mm f/4-5.8 ED WR Verdict

Overall, this lens is a competent performer, capable of decent sharpness when used within its limits. The weather sealing and HD coating are also a welcome addition, especially as the price has been kept reasonable. Those after a telephoto to add to the range provided by their 18-55mm kit lens should be well catered for by this lens.

Pentax HD Pentax-DA 55-300mm f/4-5.8 ED WR Specifications

Members gallery photos using: HD PENTAX-DA 55-300mm F4-5.8 ED WR

Algernon Algernon

8880 posts
14 years
Lancashire

Posted 28/01/2014 - 16:17 Link

The earlier version was excellent and this one looks at least as good.

The top two shots are really impressive.

Half Man... Half Pentax ... Half Cucumber

Pentax K-1 + K-5 and some other stuff

Algi

PLF PLF

6 posts
Nearby Hamburg/Germany

Posted 25/06/2024 - 10:55 Link

At least for me any xx-300 mm zoom lens should perform best towards the long end.
(as is told for the Canon 55-250 for example)
Here the best performance is on the short side.

Sad enough that this lens cannot be used in AF mode with all (my) Pentax dslr.
