HD PENTAX-DA 40mm f/2.8 Limited Lens Review

Gary Wolstenholme reviews the Limited edition HD PENTAX-DA 40mm f/2.8 lens for Pentax DSLRs.

11/11/2013 - 14:26

Handling and Features
Performance
Verdict
Specification

HD Pentax DA 40mm F2 8 Limited Lens Black (4)

As part of the Pentax Limited range, this compact 40mm pancake lens is  one of their flagship optics. It has a bright maximum aperture of f/2.8, costs around £440 and is only 15mm thick without a hood attached. On a Pentax DSLR this lens provides an angle of view equivalent to a 60mm lens used on a 35mm camera.

This is now currently one of three 40mm pancake lenses available. This newer optic includes newly developed HD coatings, which promise to greatly reduce internal reflections that can cause ghosting and flare.

HD PENTAX-DA 40mm f/2.8 Limited Handling and Features

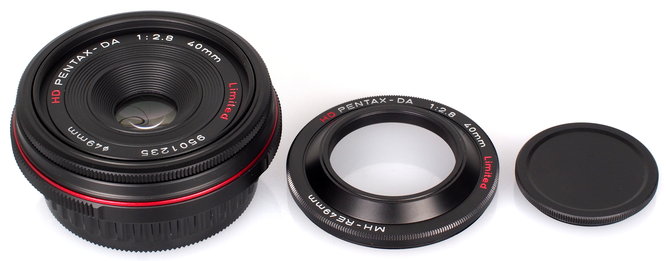

HD Pentax DA 40mm F2 8 Limited Lens Black (3)

The slim body of this 40mm lens is constructed from high quality metal and plastics so it feels incredibly solidly put together as a result. Even so, the lens only weighs 89g. When fitted to the Pentax K-5 IIs body used for testing, this lens makes quite a compact duo.

Focusing is not performed internally, as is to be expected with a pancake lens and the filter thread does not rotate, making it perfect for use with polarising and graduated filters. The lens accepts 49mm or 30.5mm filters. The smaller filter size is for a threaded section on the supplied compact hood. A thin manual focusing ring rotates during auto-focus, but it is adequately recessed to prevent it accidentally catching your fingers during operation. Manual focusing action is smooth, and well damped, which makes applying fine focus adjustments a pleasure. A distance scale is provided, but no hyperfocal scale has been marked on the lens barrel, which is a shame.

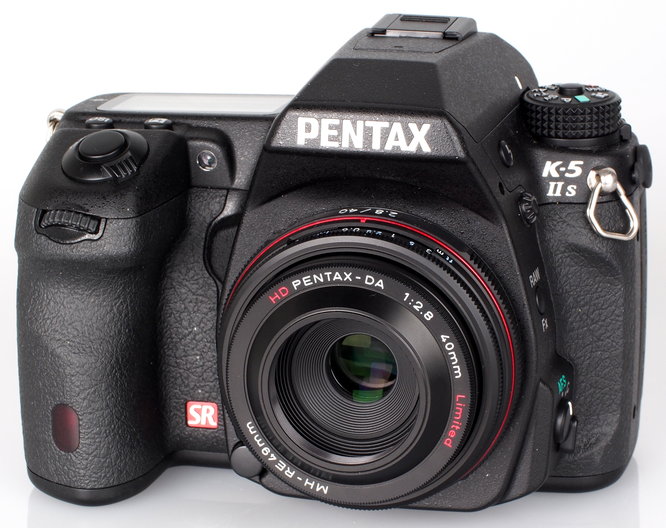

HD Pentax DA 40mm F2 8 Limited Lens Black (1)

The Pentax 'Quick Shift' focusing system has been implemented on this lens, which means manual adjustments can be applied once the lens has focused automatically. Although focusing is screw-driven, it locks onto subjects very quickly. The older screw-driven system does generate more noise than newer silent focusing lenses do though.

The minimum focus distance of 40cm is typical for pancake lenses. A maximum magnification of 0.13x is possible, which may not be best suited for frame filling close ups images of small subjects.

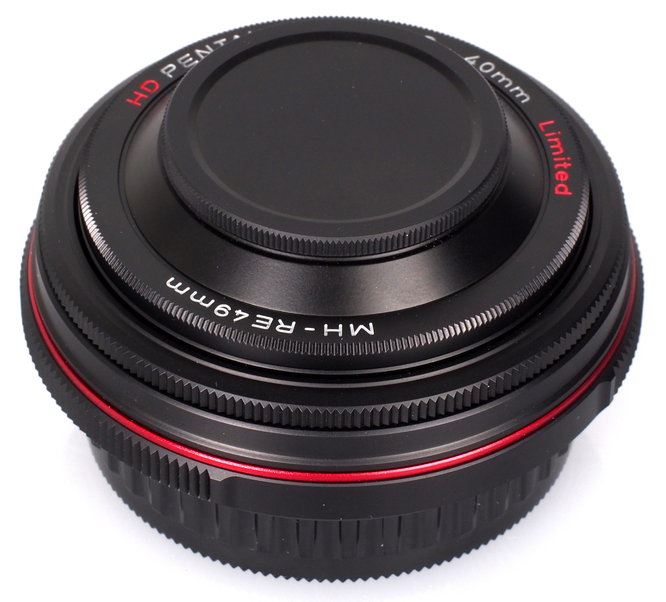

HD Pentax DA 40mm F2 8 Limited Lens Black (2)

HD PENTAX-DA 40mm f/2.8 Limited Performance

At maximum aperture, sharpness in the centre of the frame is already excellent, and the clarity recorded towards the edges of the frame falls just short of good levels at this aperture. Stopping down improves sharpness across the frame, with peak performance being realised at f/8. Here sharpness is outstanding in the centre and excellent towards the edges of the frame.

40mm @ MTF
40mm @ MTF

How to read our charts

The blue column represents readings from the centre of the picture frame at the various apertures and the green is from the edges. Averaging them out gives the red weighted column.

The scale on the left side is an indication of actual image resolution. The taller the column, the better the lens performance. Simple.

For this review, the lens was tested on a Pentax K-5 IIs using Imatest.

Chromatic aberrations are extremely well controlled, with remaining well below a quarter of a pixel width at nearly all apertures.

CA @ 40mm
CA @ 40mm

How to read our charts

Chromatic aberration is the lens' inability to focus on the sensor or film all colours of visible light at the same point. Severe chromatic aberration gives a noticeable fringing or a halo effect around sharp edges within the picture. It can be cured in software.

Apochromatic lenses have special lens elements (aspheric, extra-low dispersion etc) to minimize the problem, hence they usually cost more.

For this review, the lens was tested on a Pentax K-5 IIs using Imatest.

Falloff of illumination is well controlled for a lens with an f/2.8 maximum aperture. At f/2.8 the corners of the frame are 1.03 stops darker than the image centre and visually uniform illumination is achieved with the lens stopped down to f/5.6 or beyond.

Only a minute amount of barrel distortion is present in images taken with this lens. Imatest detected 0.538% barrel distortion, which will be very hard to spot, unless straight lines very near the edges of the frame run absolutely parallel with the frame border. The distortion pattern is uniform across the frame, so if you require absolutely straight lines, this low level of distortion should be relatively easy to correct.

During testing, this lens proved itself very resistant to flare and contrast levels remain good, even when shooting into the light. The dinky little lens hood that is supplied with the lens does a great job of shielding the lens from extraneous light, as well as from bumps and scrapes.

Pentax HD PENTAX-DA 40mm f/2.8 Limited Sample Photos

Sharpness is outstanding in the centre and excellent towards the edges of the frame when stopped down | 1/160 sec | f/11.0 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_166_1383728671.jpg">High-Res</a>

Sharpness is outstanding in the centre and excellent towards the edges of the frame when stopped down | 1/160 sec | f/11.0 | 40.0 mm | ISO 100
High-Res

At maximum aperture, sharpness is already excellent in the centre of the frame | 1/60 sec | f/2.8 | 40.0 mm | ISO 200<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_162_1383728657.jpg">High-Res</a>

At maximum aperture, sharpness is already excellent in the centre of the frame | 1/60 sec | f/2.8 | 40.0 mm | ISO 200
High-Res

Closest focus is 40cm | 1/100 sec | f/3.2 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_158_1383728626.jpg">High-Res</a>

Closest focus is 40cm | 1/100 sec | f/3.2 | 40.0 mm | ISO 100
High-Res

Contrast delivered by this lens is good, even when shooting into the light | 1/160 sec | f/4.5 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_159_1383728636.jpg">High-Res</a>

Contrast delivered by this lens is good, even when shooting into the light | 1/160 sec | f/4.5 | 40.0 mm | ISO 100
High-Res

1/500 sec | f/2.8 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_154_1383728596.jpg">High-Res</a>

1/500 sec | f/2.8 | 40.0 mm | ISO 100
High-Res

1/1000 sec | f/2.8 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_155_1383728605.jpg">High-Res</a>

1/1000 sec | f/2.8 | 40.0 mm | ISO 100
High-Res

1/200 sec | f/2.8 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_160_1383728646.jpg">High-Res</a>

1/200 sec | f/2.8 | 40.0 mm | ISO 100
High-Res

1/2500 sec | f/2.8 | 40.0 mm | ISO 100<br /><a target="_blank" href="https://www.magezinepublishing.com/equipment/images/equipment/HD-PENTAXDA-40mm-f28-Limited-5266/highres/PentaxLimited40mmHD_156_1383728616.jpg">High-Res</a>

1/2500 sec | f/2.8 | 40.0 mm | ISO 100
High-Res


Value For Money

With this lens being one of the 'Limited' line from Pentax, it carries a slight price premium. This lens is available for around £440. It's predecessor is still available, but for over £100 less, being priced at around £325.

There is also the XS 40mm f/2.8 pancake lens, which is cheaper still at around £200, and although this lens is slimmer, it doesn't sport the quick shift focusing system.

HD PENTAX-DA 40mm f/2.8 Limited Verdict

Overall, this lens performs excellently, addressing some of the weaknesses of the other 40mm pancake lenses in their line up at the same time. Whether this is worth the extra hundred pounds or more to you, will depend how much you value things like, resistance to flare, whether a hood is included, build quality or how nice the lens is to focus manually.



  The HD Pentax-DA 40mm f/2.8 Limited performs excellently with excellent sharpness.


HD PENTAX-DA 40mm f/2.8 Limited Pros

Excellent sharpness from maximum aperture
Thin and lightweight
Good build quality and handling
Fast focusing

HD PENTAX-DA 40mm f/2.8 Limited Cons

May be a touch too expensive when compared to existing lenses in the range

FEATURES
HANDLING
PERFORMANCE
VALUE FOR MONEY
VERDICT

Pentax HD PENTAX-DA 40mm f/2.8 Limited Specifications

ManufacturerPentax
General
Lens Mounts
  • Pentax K SMC-DA
Lens
Focal Length 40mm
Angle of View 0 - 39
Max Aperture f/2.8
Min Aperture f/22
Filter Size 49mm
Stabilised No
35mm equivalent 60mm
Internal focusing No
Maximum magnification No Data
Focusing
Min Focus 40cm
Construction
Blades 9
Elements 5
Groups 4
Box Contents
Box Contents No Data
Dimensions
Weight 89g
Height 15mm
