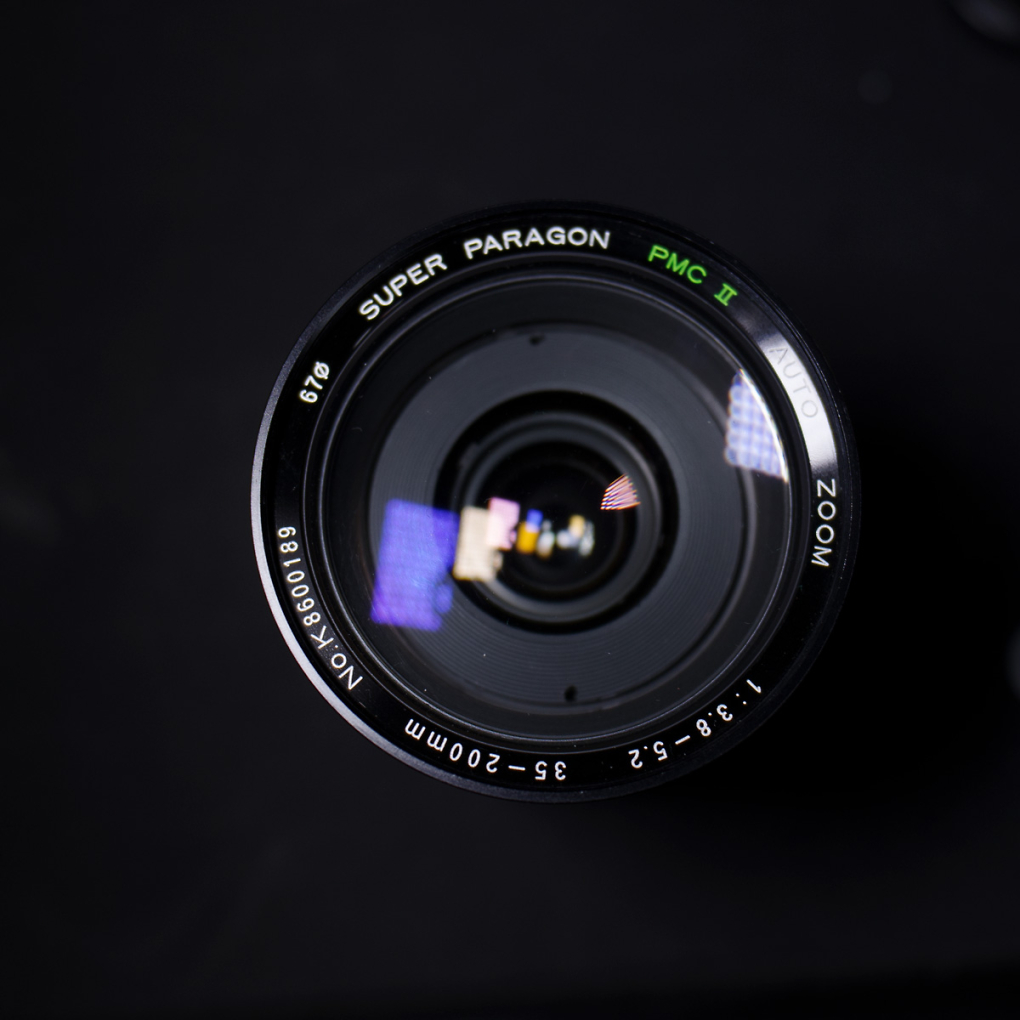

What mount is this? Super Paragon PMC 2 AUTO 350-200mm 3.8 - 5.2


GeoffMoore

Link Posted 06/02/2023 - 10:15
Hey folks, I have been gifted a lens and trying to work out what mount it is. I believe it as Pentax K mount (original) as denoted by the K on the serial. But the push pins on the lens mount are throwing me.

Does anyone know if this lens can be converted to work on the Pentax K1.

I can't find much information about this one online. The Lens itself in the flesh doesn't look a day old. A++ condition.








Any guidance appreciated.

Thanks
Geoff
Website: My adventures in Landscape Photography
YouTube: Pentax Landscape Channel
Facebook: Photography Page Weekly Updates and Musings
Twitter: Photography Mini Thoughts
Instagram: Yes, Here
Flickr: Yes Here
Last Edited by GeoffMoore on 06/02/2023 - 10:16

Jonathan-Mac

Link Posted 06/02/2023 - 11:47
The only mount I know of that has buttons like this on the lens is the Olympus OM, but they're not usually round. These ones could be round because it's a third party item.

This site seems pretty extensive and the only other possibility I see there is the Voigtlander Vitessa T and I'd think that's too old for a 35-200mm zoom.

To be honest though, a third party legacy super-zoom is likely to be of such poor optical quality that it's not worth the bother of trying too hard...
Pentax hybrid user - Digital K3, film 645 and 35mm SLR and Pentax (&other) lenses adapted to Fuji X and Panasonic L digital
Fan of DA limited and old manual lenses

Helpful

GeoffMoore

Link Posted 06/02/2023 - 12:00
Jonathan-Mac wrote:
The only mount I know of that has buttons like this on the lens is the Olympus OM, but they're not usually round. These ones could be round because it's a third party item.

This site seems pretty extensive and the only other possibility I see there is the Voigtlander Vitessa T and I'd think that's too old for a 35-200mm zoom.

To be honest though, a third party legacy super-zoom is likely to be of such poor optical quality that it's not worth the bother of trying too hard...

Thanks Jonathan.
I appreciate you point about it likely not worth the bother, but there is something about obscure lenses that i like, especially when one is in such good condition. I'm now wondering if the mount has been converted previously, hence the confusion. Would still like to see how it performs if I could.
Website: My adventures in Landscape Photography
YouTube: Pentax Landscape Channel
Facebook: Photography Page Weekly Updates and Musings
Twitter: Photography Mini Thoughts
Instagram: Yes, Here
Flickr: Yes Here
Last Edited by GeoffMoore on 06/02/2023 - 12:00

petrochemist

Link Posted 06/02/2023 - 12:15
It certainly looks like OM, while the buttons are not usually round I have at least one third party lens that does have round buttons.
To confirm the greater diameter of the OM mount (across bayonet tabs) is ~46.7mm and without the tabs the diameter is ~44.2mm.
OM has a horizontal locking pin near the end of one of the bayonet tabs.

Perhaps useful is the note I have that the lens can be used on PK bodies upside down if it is held against the cameras mounting flange.
Mike
.
Pentax:K5ii, K7, K100D, DA18-55, DA10-17, DA55-300, DA50-200, F100-300, F50, DA35 AL, 4* M50, 2* M135, Helicoid extension, Tak 300 f4 (& 6 film bodies)
3rd Party: Bigmos (Sigma 150-500mm OS HSM),2* 28mm, 100mm macro, 28-200 zoom, 35-80 zoom, 80-200 zoom, 80-210 zoom, 300mm M42, 600 mirror, 1000-4000 scope, 50mm M42, enlarger lenses, Sony & micro 4/3 cameras with various PK mounts, Zenit E...
Far to many tele-converters, adapters, project parts & extension tubes etc.

.[size=11:].Flickr WPF Panoramio

Helpful

GeoffMoore

Link Posted 07/02/2023 - 12:06
petrochemist wrote:
It certainly looks like OM, while the buttons are not usually round I have at least one third party lens that does have round buttons.
To confirm the greater diameter of the OM mount (across bayonet tabs) is ~46.7mm and without the tabs the diameter is ~44.2mm.
OM has a horizontal locking pin near the end of one of the bayonet tabs.

Perhaps useful is the note I have that the lens can be used on PK bodies upside down if it is held against the cameras mounting flange.

Thank you Mike.
I had noticed upside down the lens felt like it should fit but sadly not. I reached out to the website owner for the link Johnathan posted and he confirmed that the mount was for OM so, I think its safe to say this might be going on ebay! - Thank you all for your help.
Website: My adventures in Landscape Photography
YouTube: Pentax Landscape Channel
Facebook: Photography Page Weekly Updates and Musings
Twitter: Photography Mini Thoughts
Instagram: Yes, Here
Flickr: Yes Here
